Silva 70UN Marine Compass
Silva 70UN Marine Compass
• FLOATS IF DROPPED IN WATER
- Floatable neck strap
• MULTI-MOUNTING
- Bracket that allows multiple mounting options
• SUITABLE FOR ALL BOATS
- Fits in all boat types
-

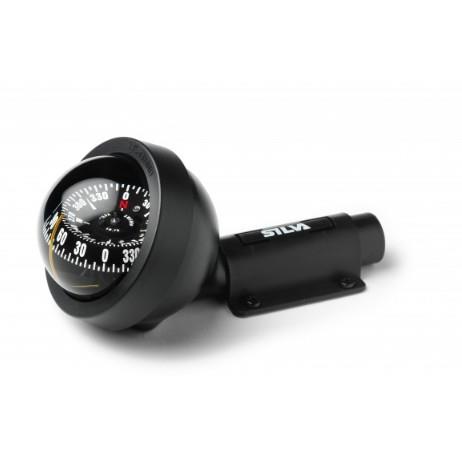

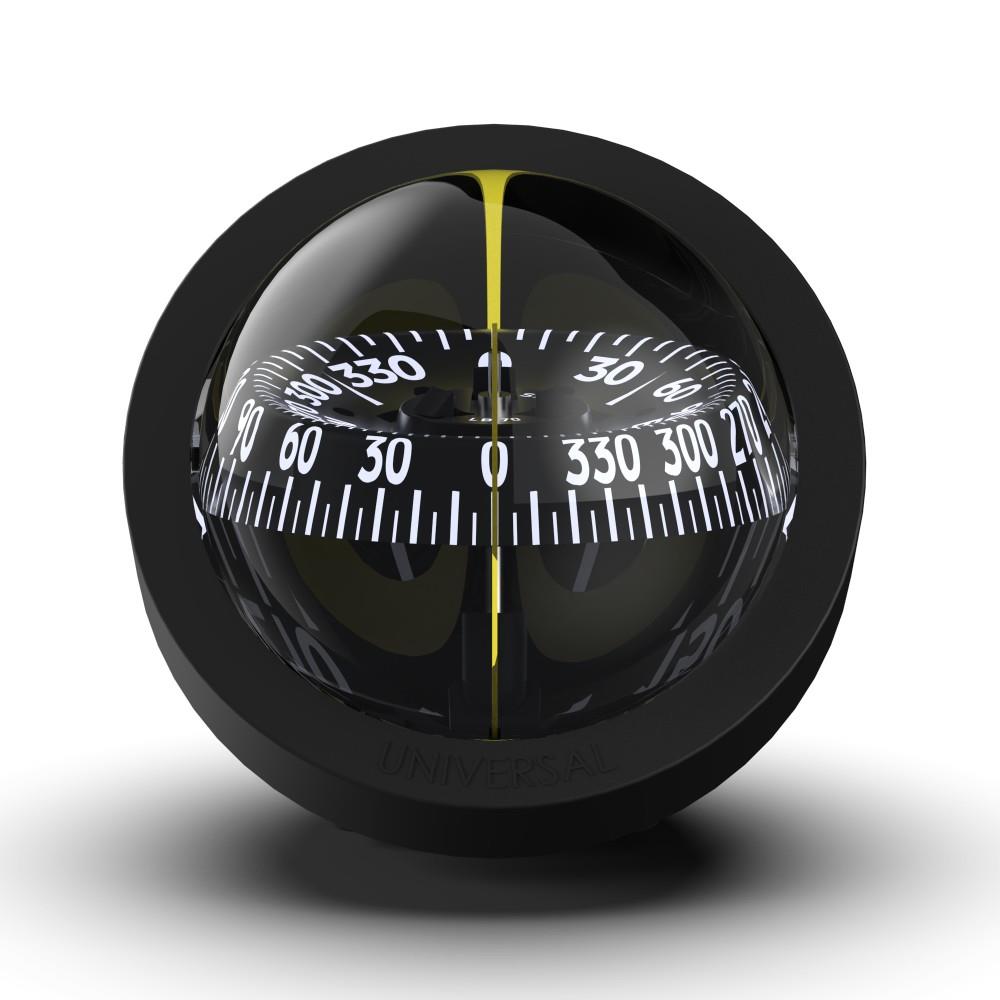

70UN is a universal compass that can be used in its bracket as a steering compass or as a handheld sighting compass.
70UN can be installed in any inclination or position, even upside down. It is easily detached from the bracket to enable temporary sighting use or for security purposes. With a main steering scale on the horizontal part and direct reading on the vertical edge,

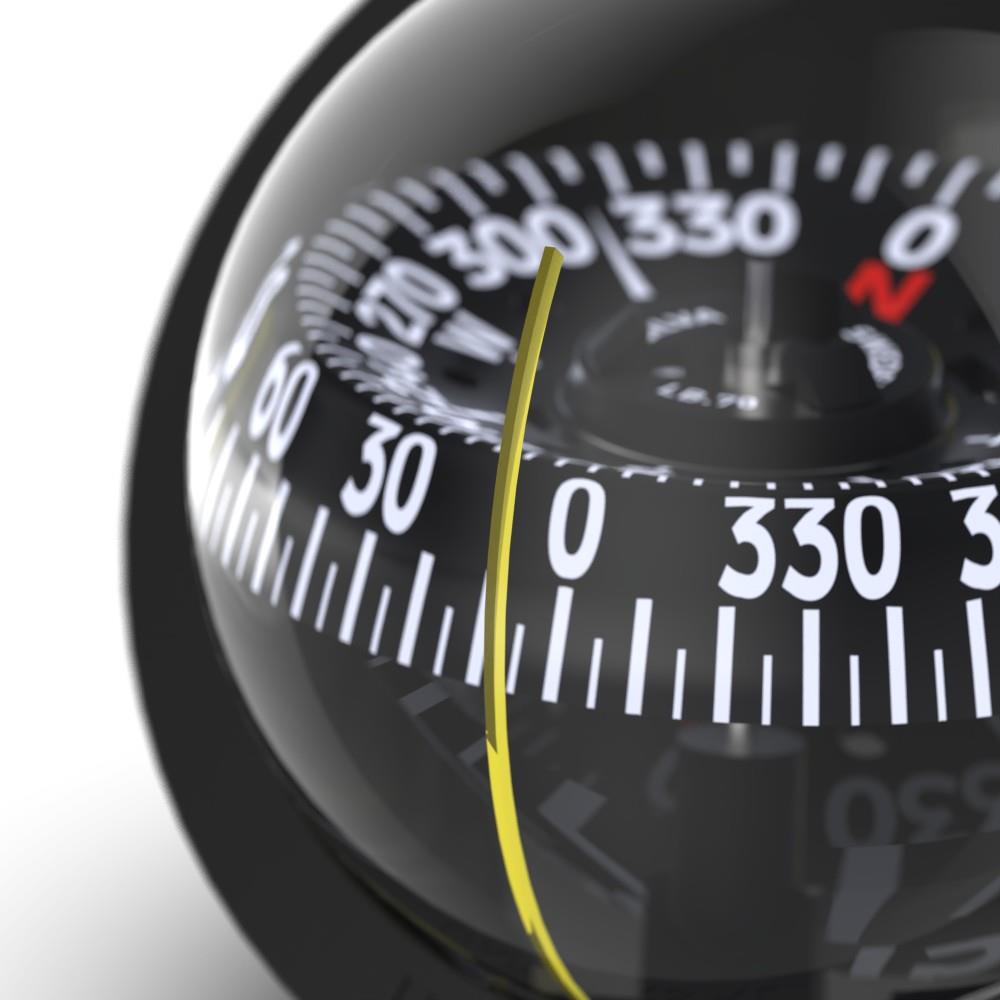

70UN is ideal for boats with a sitting as well as a standing helmsman. The curved lubber line enables swift and clear reading at a glance without parallax errors. If dropped in the sea – it floats! Suitable for small boats, kayaks, dinghies, canoes and more.
Specifications:
Accuracy ~ +/- 17.8mils/1°
Apparent card diameter ~ 70mm
Built-in compensator ~ Optional
Card type ~ Cone
Compatibility ~ Kayaks, powerboats, sailboats
Heeling Angle ~ Roll: 30° Pitch: 360°
Heel Angle Scale ~ No
Illumination ~ No
Materials ~ Acrylic, ABS
Mounting ~ Bracket, Handheld
Mounting angle ~ any
Temperature operating range ~ -10 to +70 °C
Variant ~ Magnetic North
Water resistant ~ Yes
Weight ~ 405g
